A1 High Brightness Fixed Installation LED Display for Outdoor Advertising

A1 High Brightness Fixed Installation LED Display for Outdoor Advertising

€1.135,00

Pixel pitch: 8mm

8mm 10mm

Cabinet size: 960mm*960mm

960mm*960mm

Quantity:

A1 High Brightness Fixed Installation LED Display for Outdoor Advertising

€1.135,00

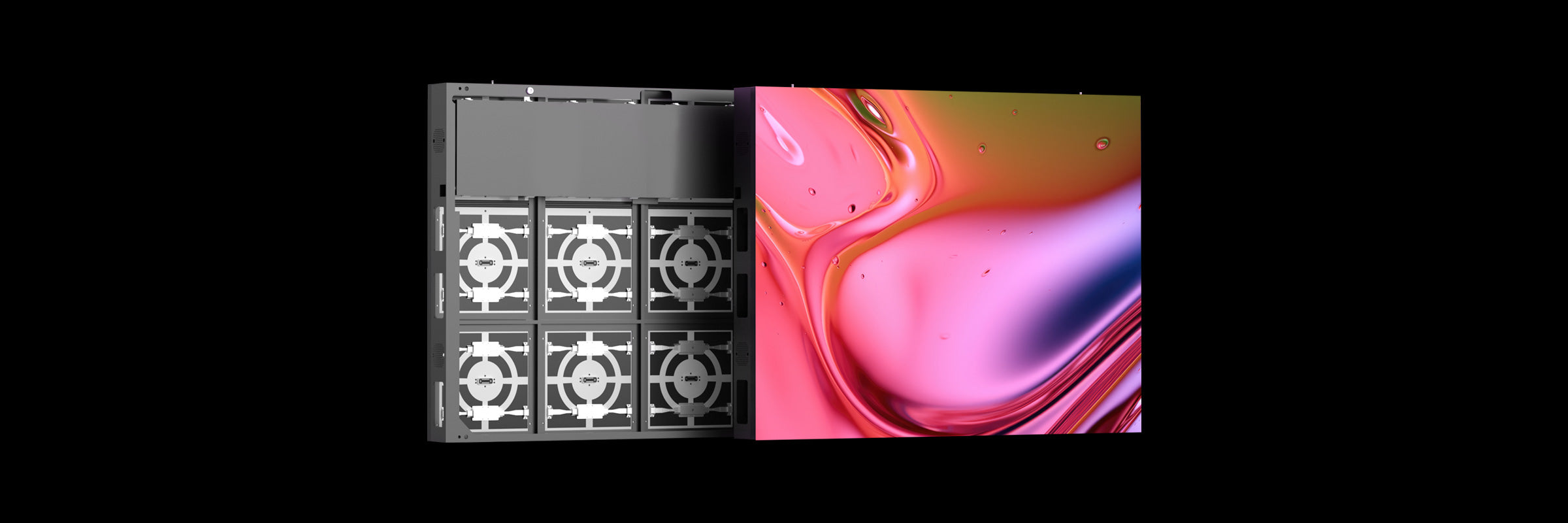

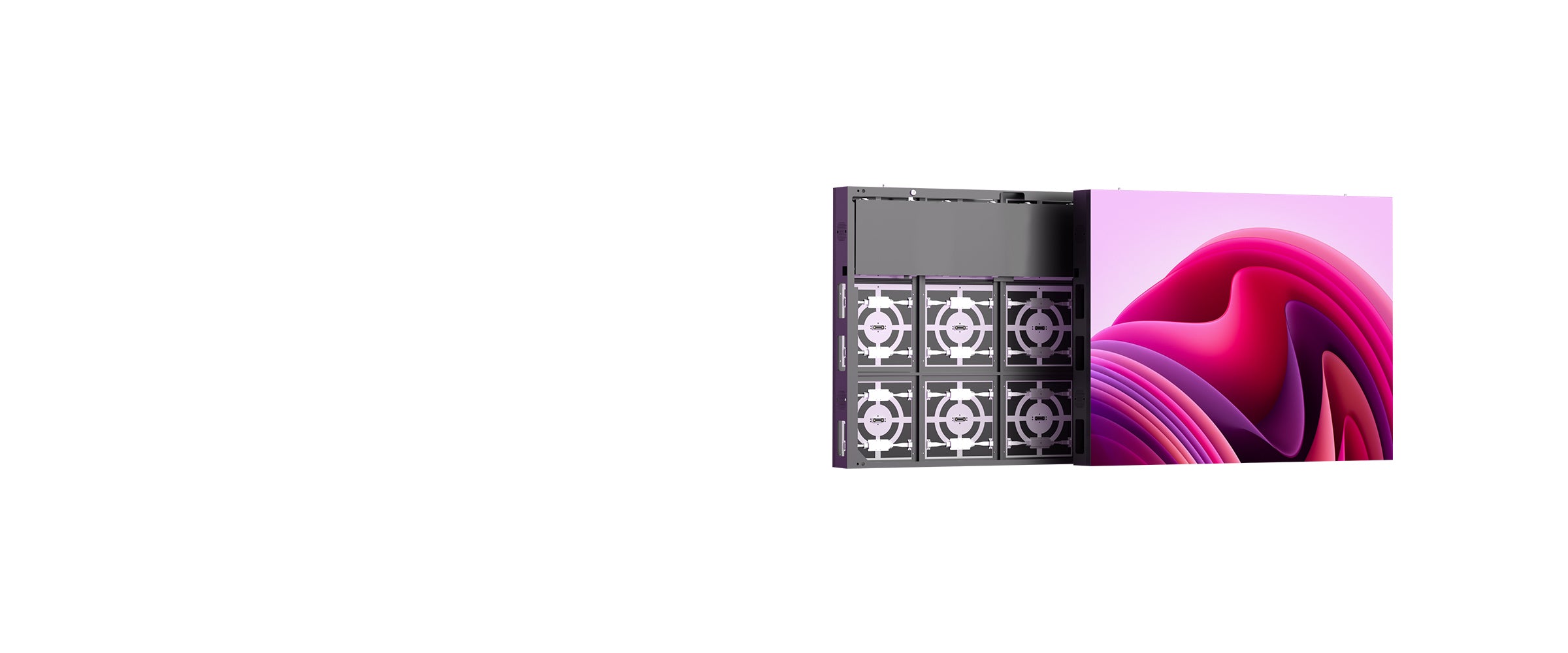

The Kensun A1 LED Display features 28.5kg aluminum cabinets for easy handling, natural heat dissipation, and 10% less heat with common cathode technology. Dual front/rear access and IP68-rated waterproof modules ensure durability and simple maintenance for outdoor use.

6000 nits

Maximum brightness

3840 Hz

Refresh rate

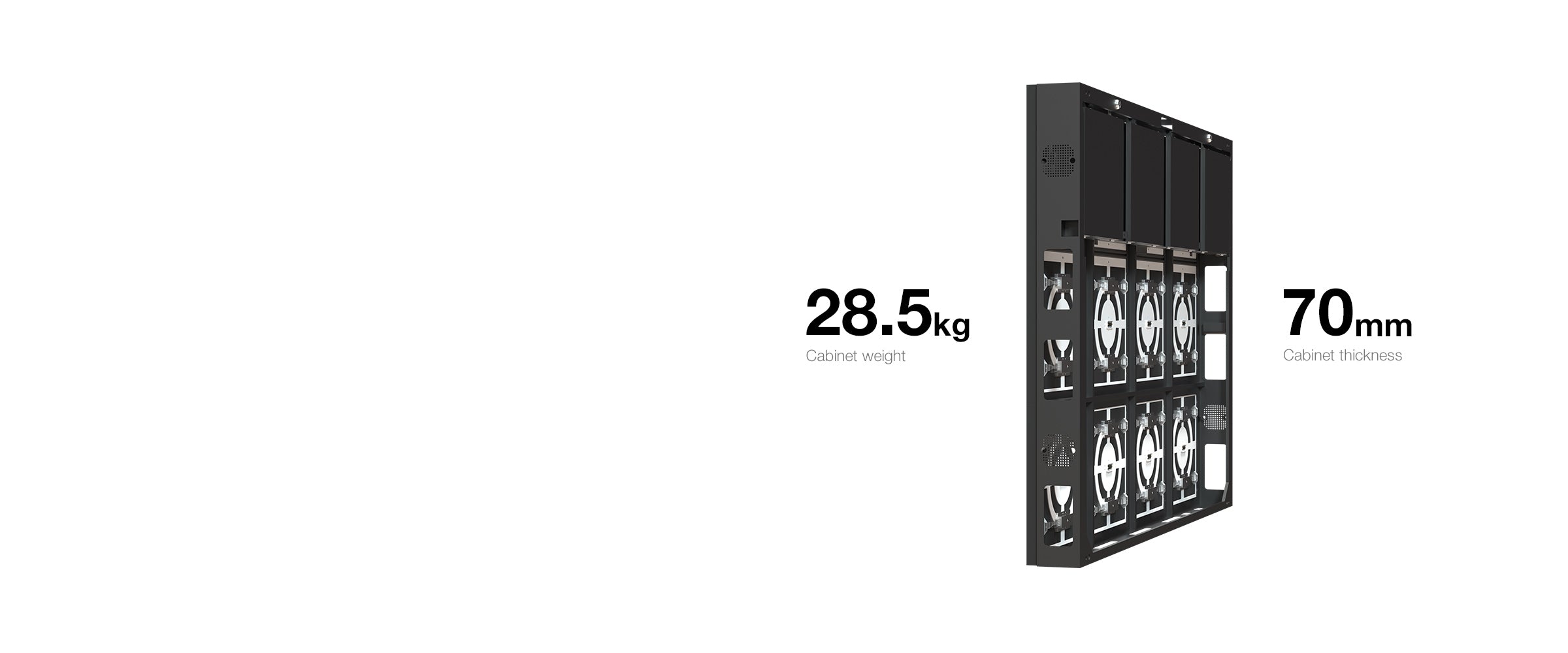

The A1 features a sturdy frame architecture made of aluminum, measuring just 70mm thick and weighing only 28.5kg per cabinet. Its lightweight design ensures easier handling, quick assembly.

Common cathode technology powers each diode with precise voltage, saving up to 75% energy compared to traditional LED displays and greatly reducing operational costs.

The A1 module is fully waterproof and dustproof, with components encapsulated to achieve an IP68 rating, ensuring exceptional stability and durability.

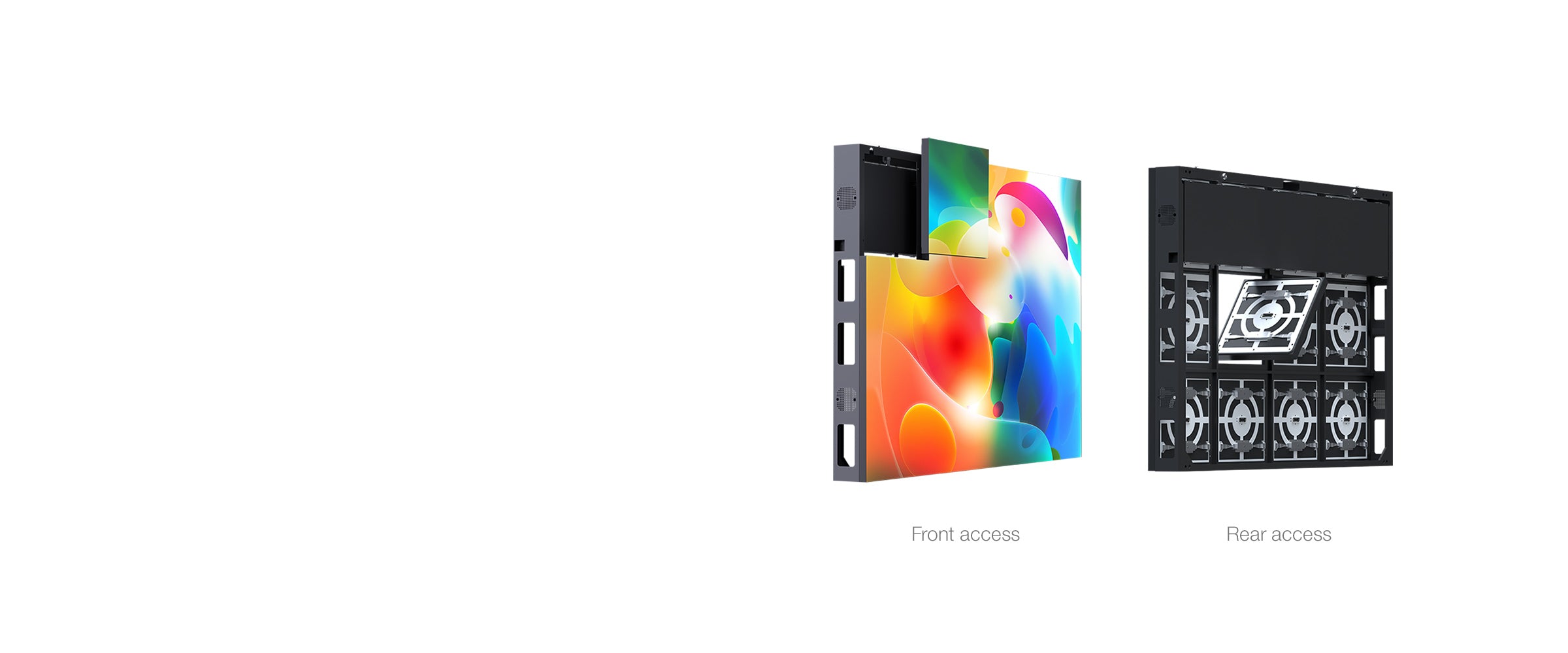

The A1 display offers dual service access, with both the signal and power systems accessible from the front or back simultaneously. This design ensures effortless and convenient maintenance for both wall-mounted installations and standing billboards.

Tech specs

The specs shown are based on the standard model. You are most welcome to contact us to customize a solution tailored to your needs.

Pixel Pitch

8mm

10mm

Module Dimension

320mm * 320mm

Module Resolution

40 * 40

32 * 32

Cabinet Material

Aluminum

Cabinet Weight

28.5kg

Cabinet Dimension

960mm * 960mm

Cabinet Resolution

120 * 120

96 * 96

Ingress Protection

IP68

Access

Front / rear

Input Signal

DVI, DP, HDMI, etc.

Input Power

AC100 - 240V
