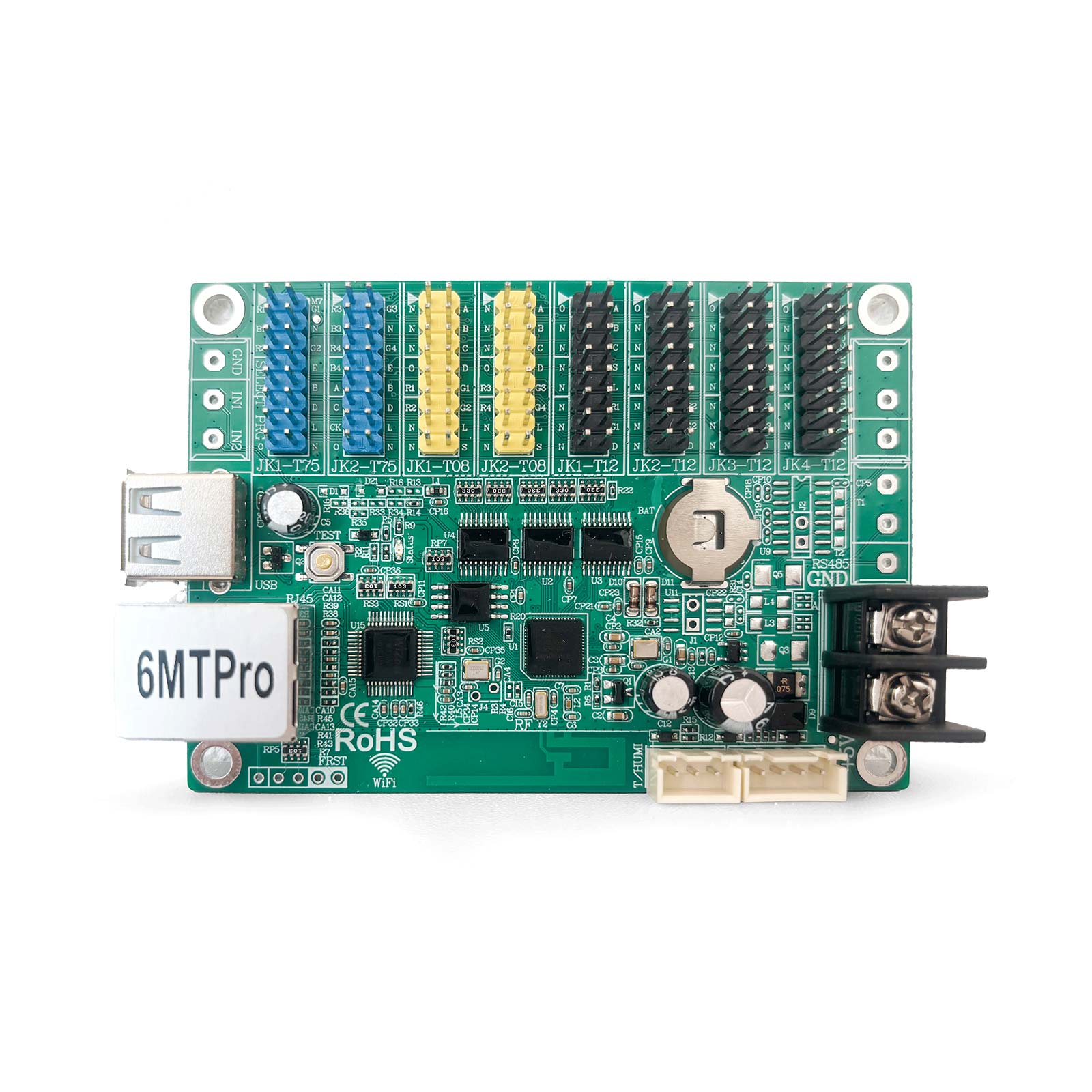

BX-6MTPro LED Control Card with Ethernet and Wi-Fi Connectivity for LED Display Systems
Features
Powerful Performance
Built on a robust hardware platform, BX-6MTPro supports up to 16K control points for single, dual, or full-color LED displays. Its wide compatibility makes it ideal for a broad range of indoor and outdoor LED displays.
Flexible Communication
Integrated with 100M Ethernet, USB, and Wi-Fi, it supports network transmission, U-disk updates (up to 15m extension), and cloud control via iLEDCloud or iLEDSys. Ensures stable performance.
Frontline Visual Quality
Supports multiple grayscale modes (4-level, 16-level, and 64-level), enhancing color depth and brightness uniformity for stunning animation and video playback.
Smart Sensor
Equipped with built-in interfaces for brightness, temperature, and humidity sensors, it provides precise environmental monitoring and adaptive brightness control for energy efficiency and stability.
Remote Management
Features timed program publishing, auto power on/off, and real-time clock synchronization, enabling fully automated, unattended operation and centralized management for LED display clusters.
Durable Design
Protected with UV-resistant conformal coating and rated IP65 dust and moisture resistance, it ensures reliable 24/7 operation with less than 0.3% failure rate, even under harsh outdoor conditions.
Tech specs
The specs shown are based on the standard model. You are most welcome to contact us to customize a solution tailored to your needs.
Single-color 16K / Dual-color 16K / Full-color 16K
1024×16, 512×32, 336×48, 256×64
8 MByte
Various single-color, dual-color, and full-color LED displays
Partition management, multi-program editing, multi-area display, multilingual support
Standard programs, shared programs
Supports up to 12 programs, each with up to 24 display zones
Text area, image area, animation area, clock area, calendar area, temperature area, counter area, message area, audio area
Animation borders, regional borders
Digital clock, analog clock, countdown timer, positive timer (supports multiple display groups)
Onboard 100M Ethernet + USB + Wi-Fi interface
2×T08 + 4×T12 + 2×T75 ports
Supports standard brightness, temperature, and humidity sensors
Supports program switching, screen brightness adjustment, display ON/OFF, screen testing
16-level manual brightness or 3 automatic adjustment modes: time-based, scheduled, or environmental auto-adjustment
System parameter configuration, program upload/update, playback monitoring, auto brightness adjustment, scheduled screen control
Ledshow Suite (PC editing software) LedSuite Mobile APP (Android / iOS)
Supports iLEDCloud and iLEDSys information release platforms (enterprise / standalone deployment)
