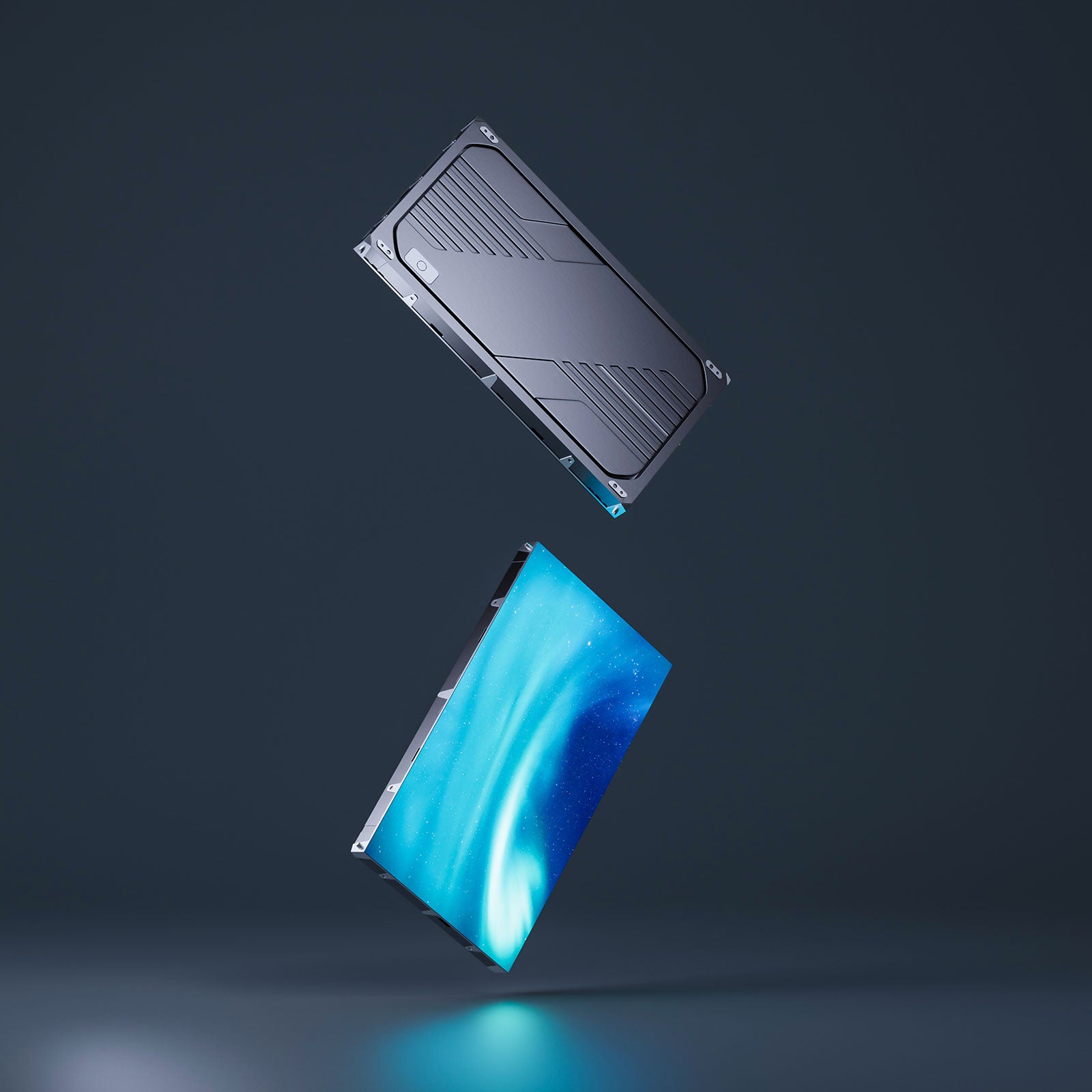

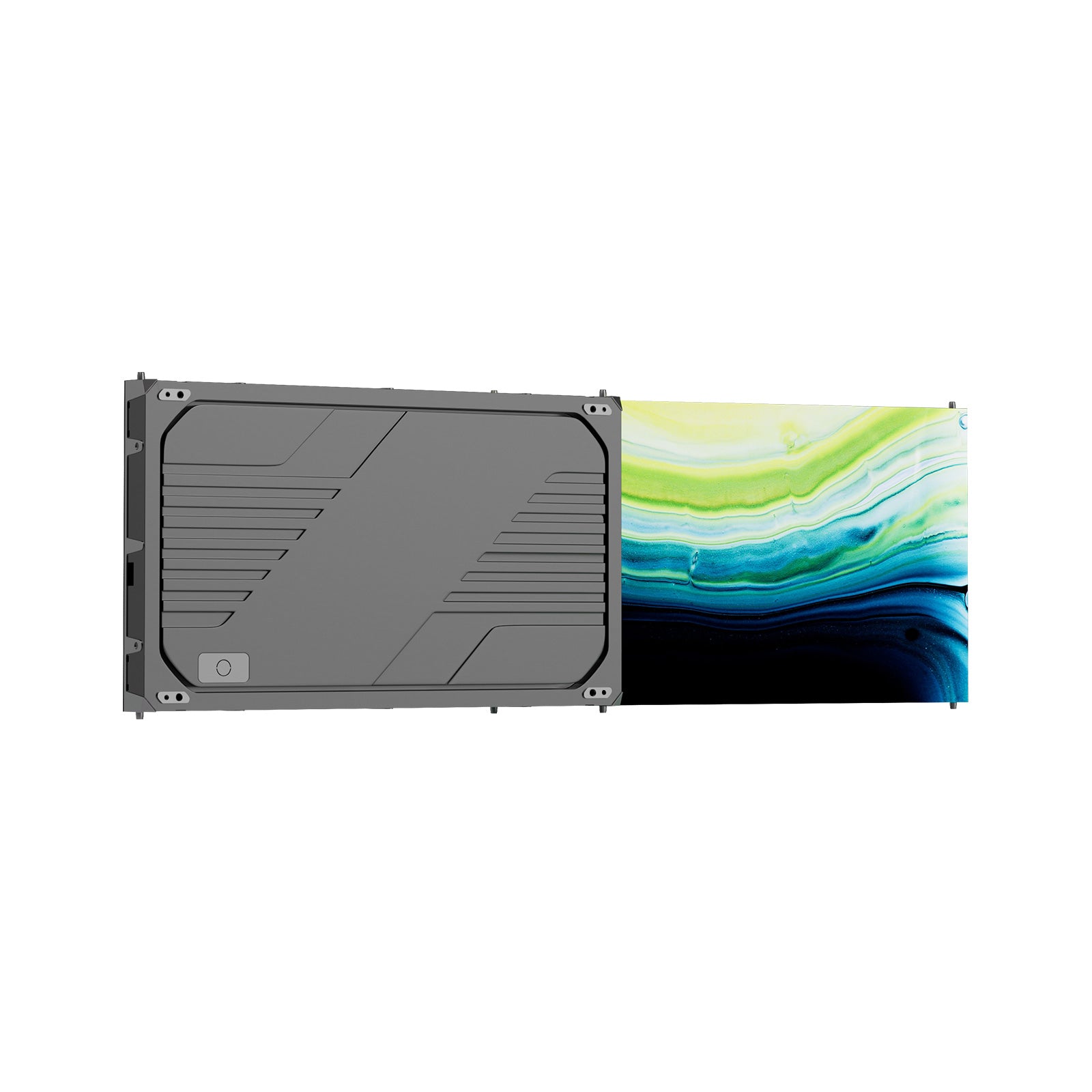

K3 COB 2K 4K 8K LED Display for Indoor Commercial and Control Room Applications

K3 COB 2K 4K 8K LED Display for Indoor Commercial and Control Room Applications

COB

€1.021,00

Pixel pitch: 0.78mm

0.78mm 1.875mm

Cabinet size: 640mm*337.5mm

640mm*337.5mm

Quantity:

K3 COB 2K 4K 8K LED Display for Indoor Commercial and Control Room Applications

€1.021,00

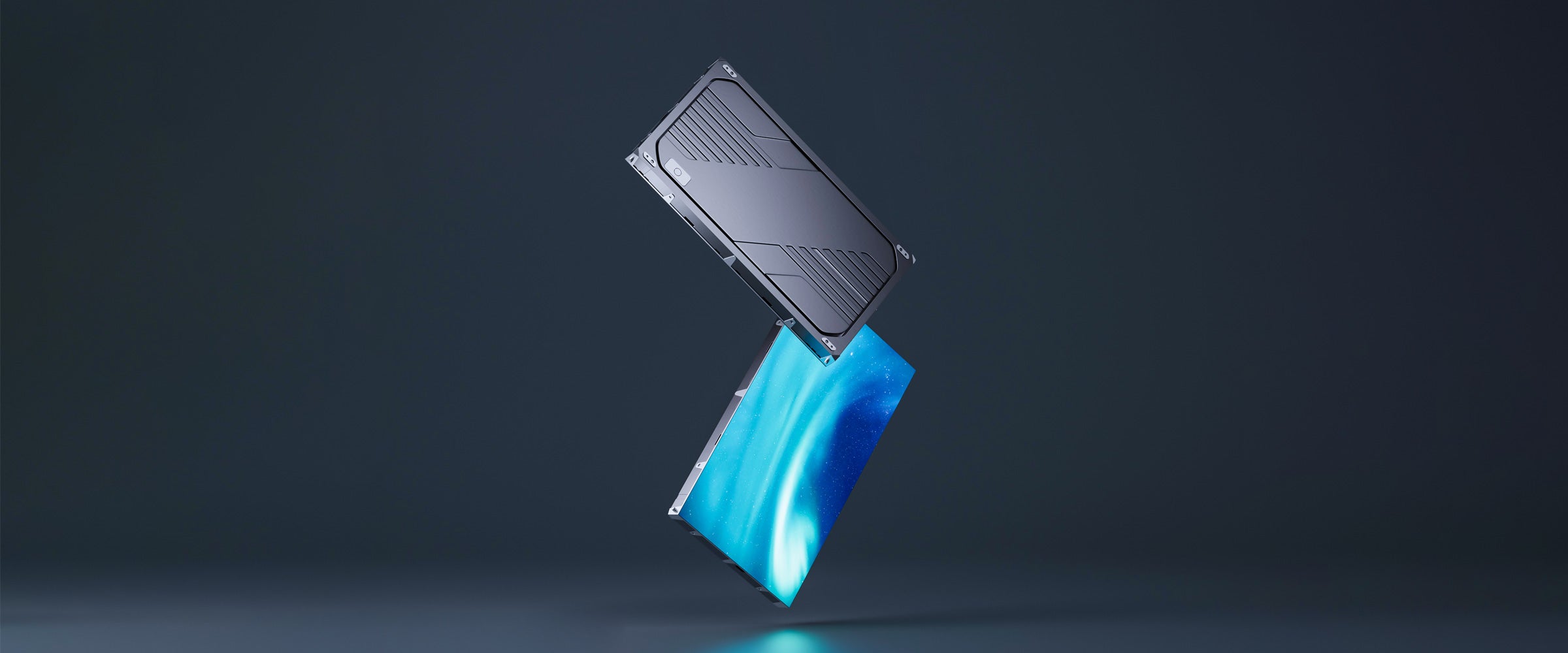

Elevate your visual experience with the K3 COB LED display, each cabinet weighs just 4 kg and measures a sleek 39.5 mm, it delivers higher contrast, durability. With common cathode efficiency, front-access maintenance, and precision tools, the K3 ensures effortless service and stunning visual experience.

600 nits

Maximum brightness

3840 Hz

Refresh rate

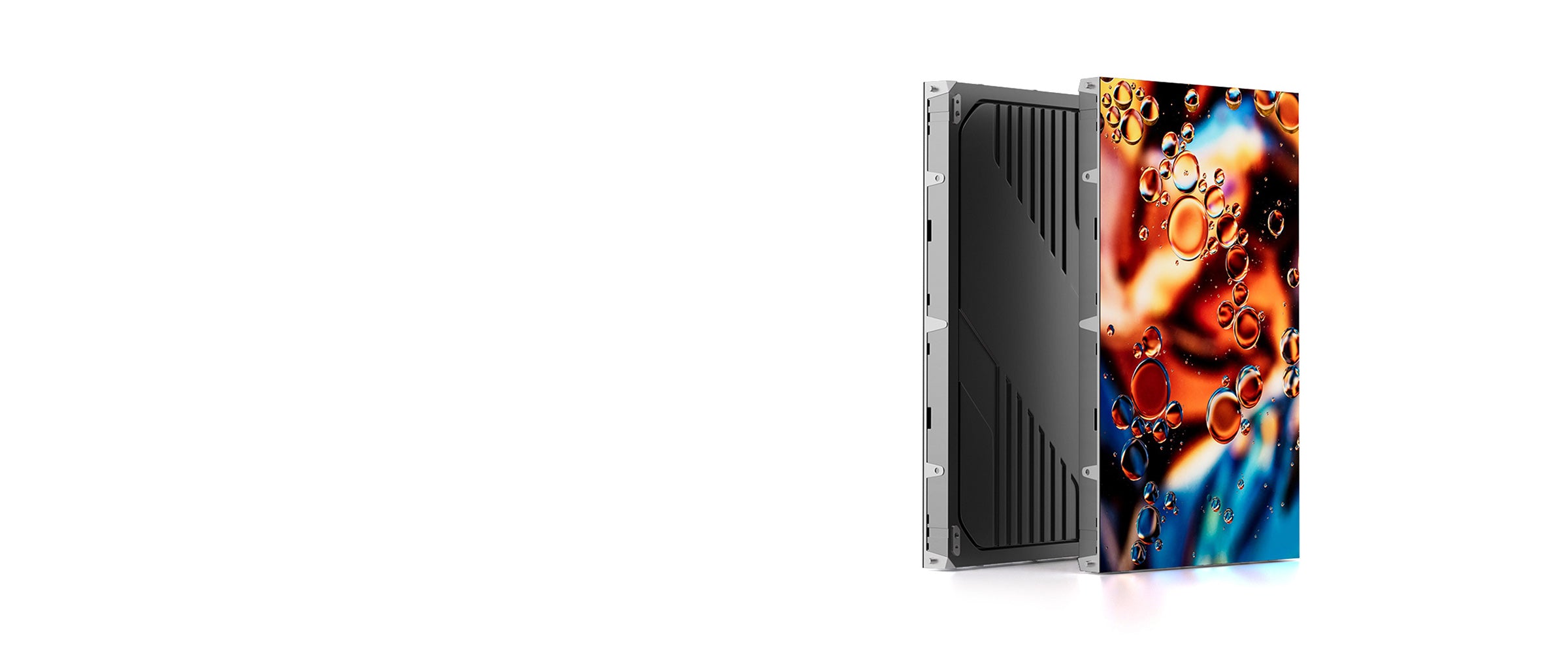

Powered by advanced COB technology, K3 delivers ultra-fine pixel pitch and exceptional heat dissipation. Compared to SMD displays, COB offers a smoother surface, wider viewing angles, and better visual uniformity—making it ideal for premium indoor applications that demand high resolution and long-term reliability.

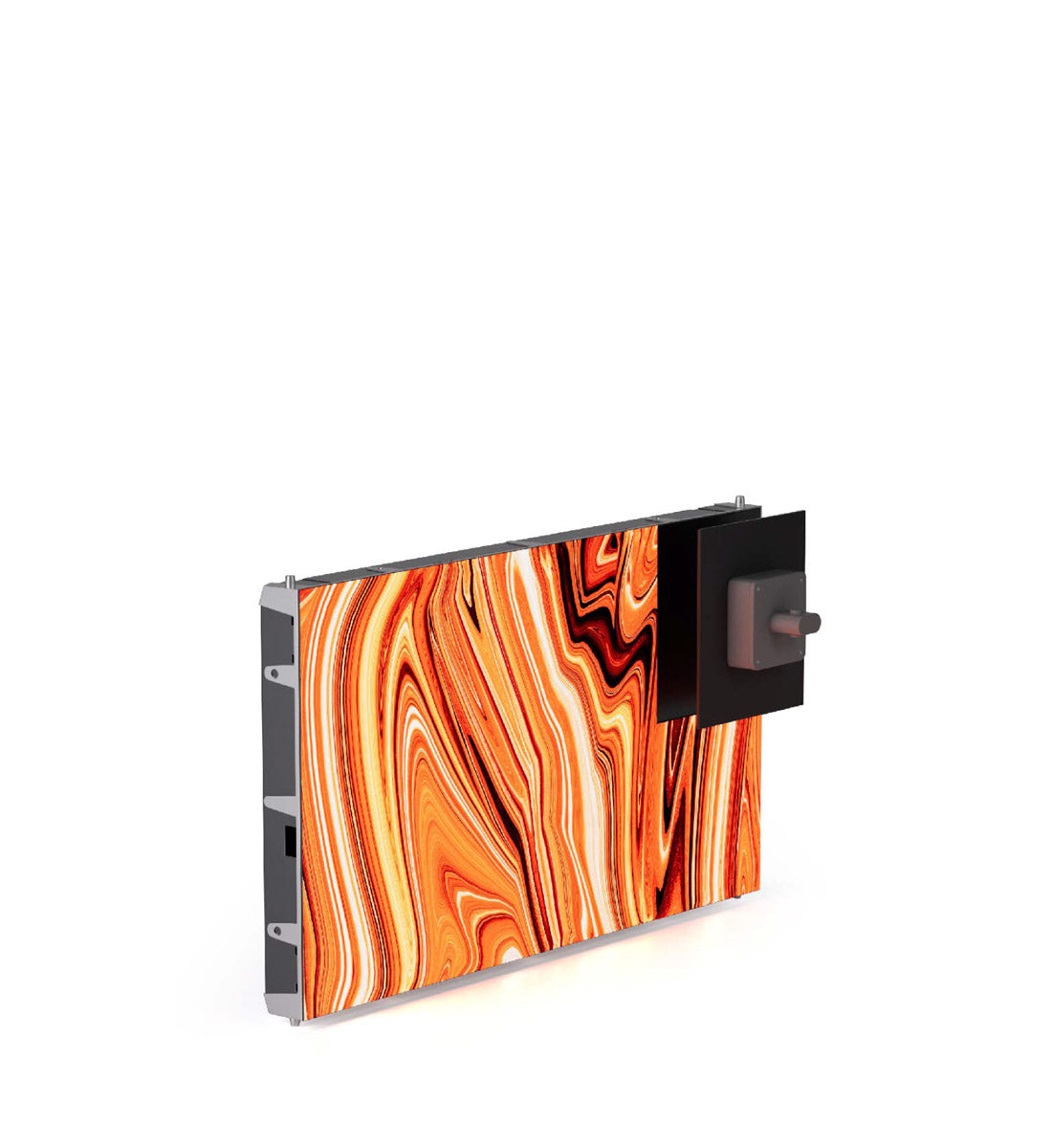

Simplify maintenance with front access and speciallydesigned tools. Easily reach all components from thefront, minimizing downtime and ensuring hassle-free upkeep.

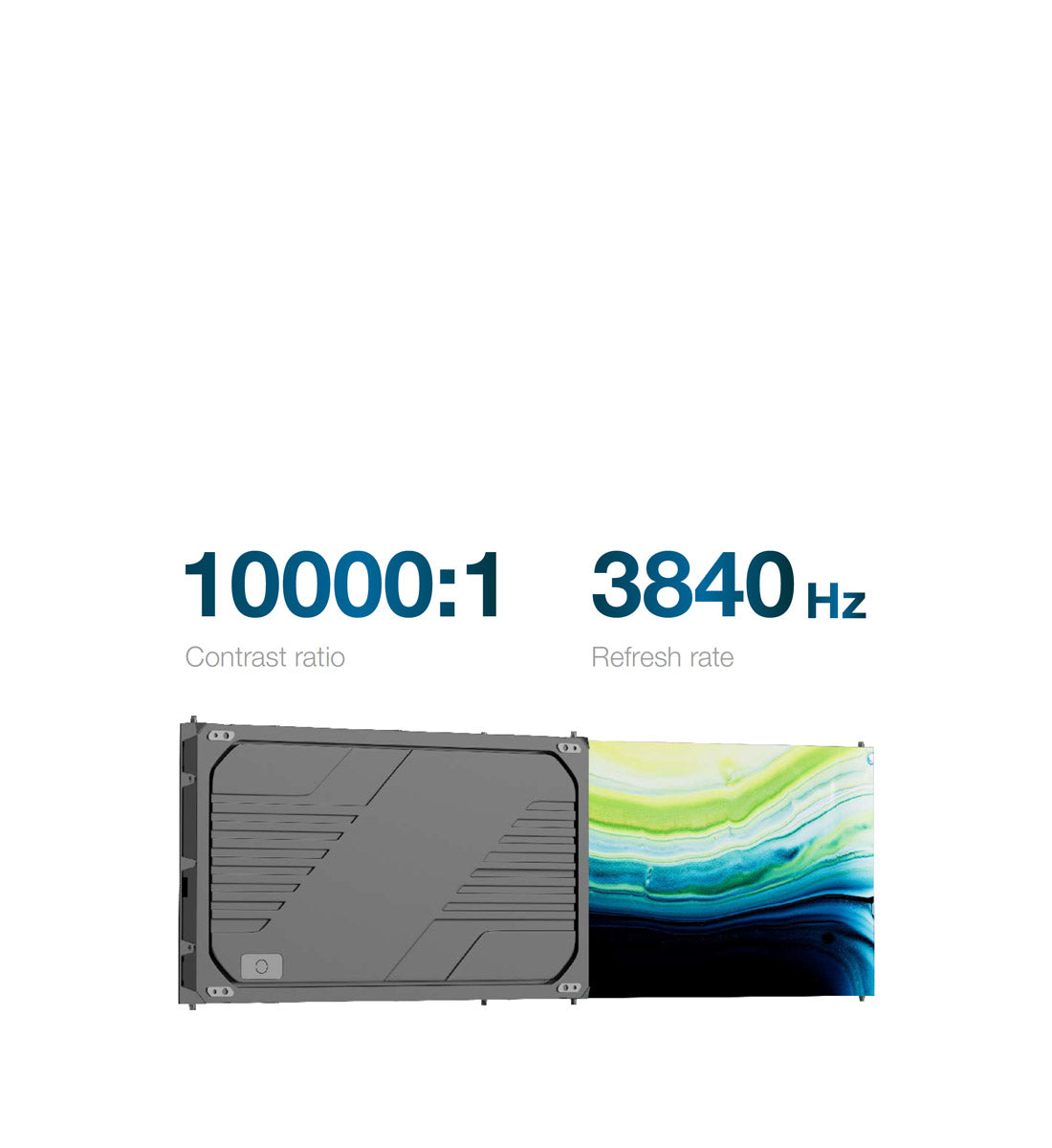

Elevate your audience’s visual experience with K3’s extraordinary high contrast ratio and refresh rate,delivering unparalleled color depth and richness.

Tailor your visual experience with a range of pixel pitches and reslolutions, all in a 16:9 size ratio. Designed for stunningHD, 4K, and 8K resolutions.

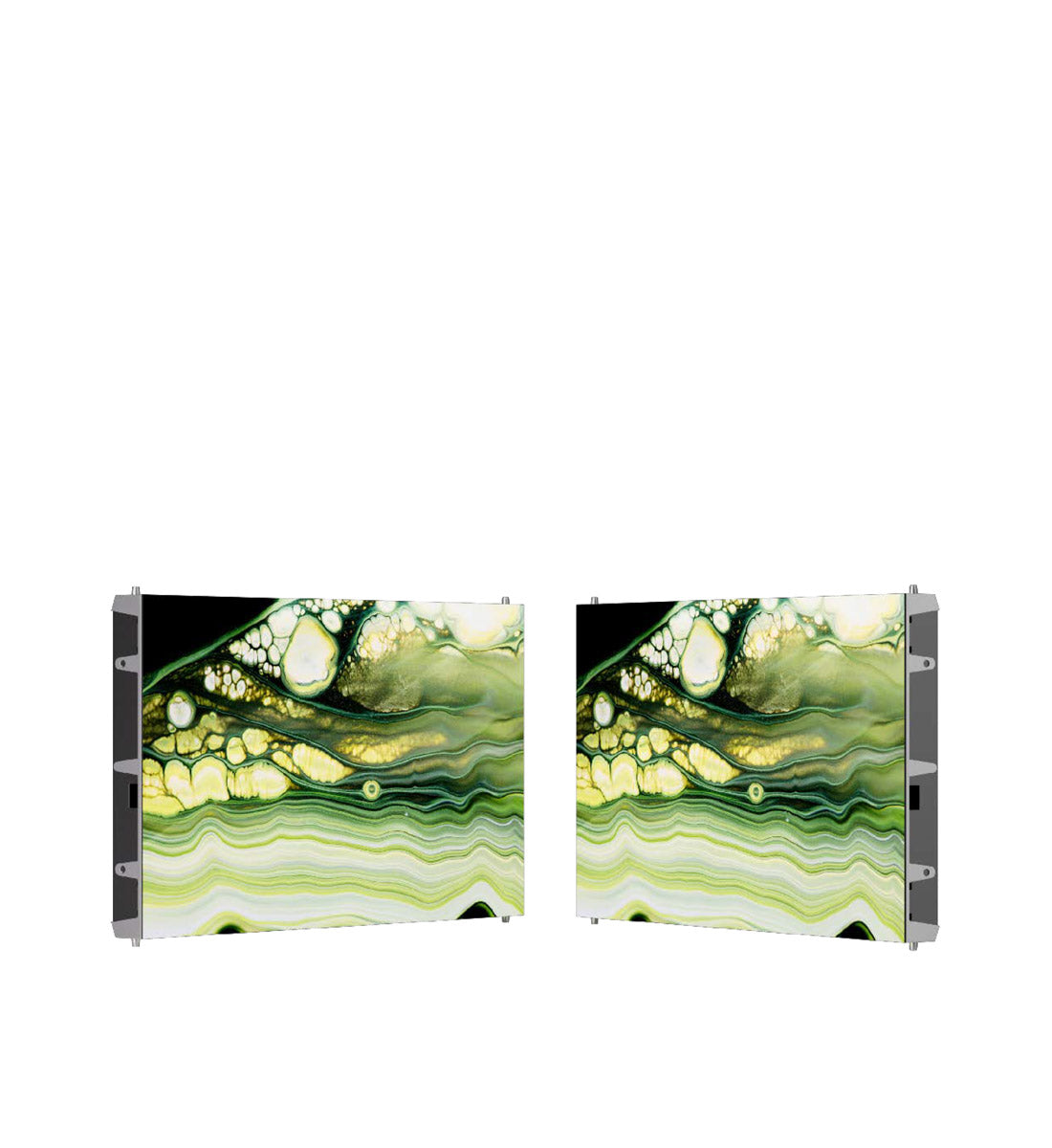

Capture attention from every perspective with asuper-wide 160° viewing angle. Perfectly rendered images ensure your message is crystal clear.

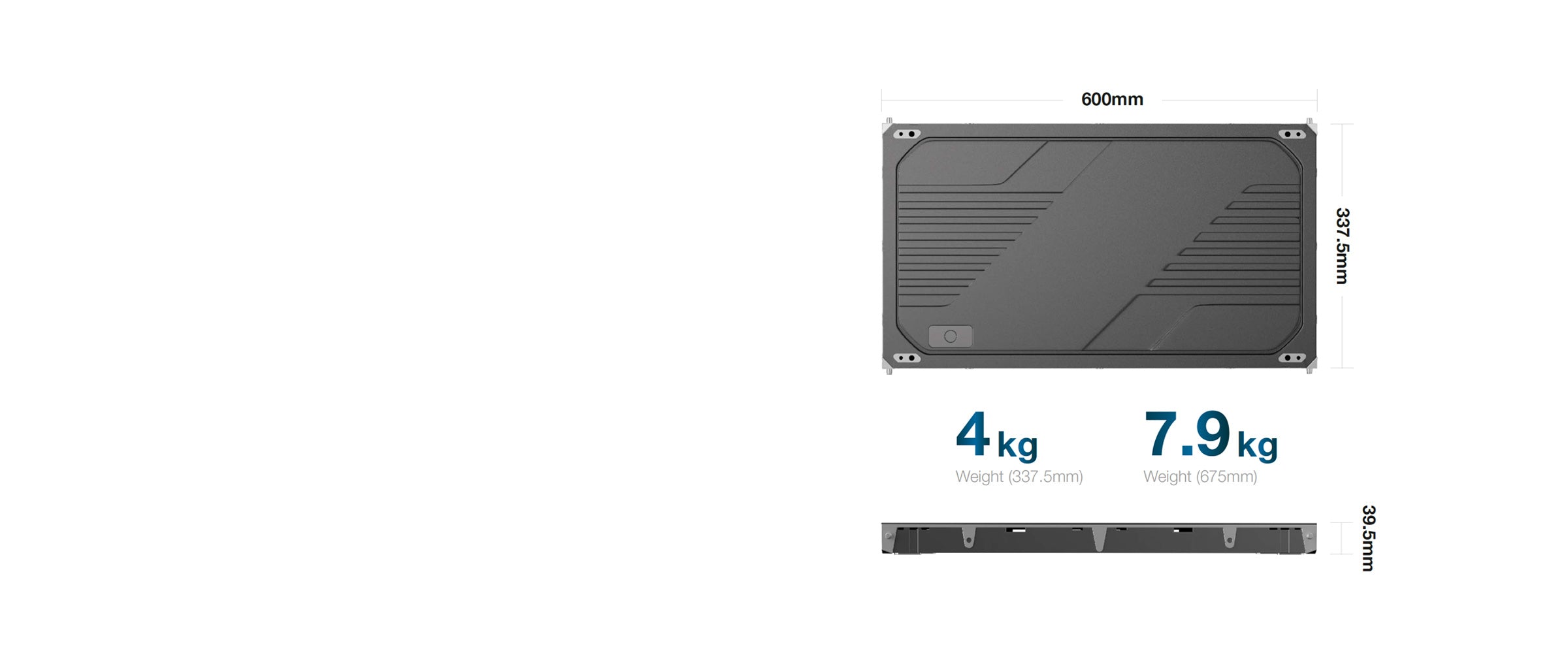

Slim and lightweight, K3 featuring a 16:9cabinet design, weighing just 4kg andmeasuring 39.5mm thick, offers seamlessintegration and portability, creating avisually stunning display that’s easy tohandle.

Tech specs

The specs shown are based on the standard model. You are most welcome to contact us to customize a solution tailored to your needs.

Pixel Pitch

0.78mm

1.875mm

Module Dimension

150mm * 168.75mm

Module Resolution

192 * 216

80 * 90 pixels

Cabinet Material

Aluminum

Cabinet Weight

7.9kg

Cabinet Dimension

600mm * 337.5mm

Cabinet Resolution

768 * 432 pixels

320 * 180 pixels

Ingress Protection

IP54

Access

Front

Input Signal

Wifi, HDMI, USB, RJ45, etc

Wifi, HDMI, USB, RJ45, etc.

Input Power

AC100 - 240V

Avg. Power

≤85 W

≤65W

Max. Power

≤170 W

≤130W

Diode Type

COB

Contrast Ratio

≥10000:1

Gray Scale

16 bit

Brightness

600 nits

Refresh Rate

3840Hz

Working Environment

Indoor

LIfespan

100,000 hours
