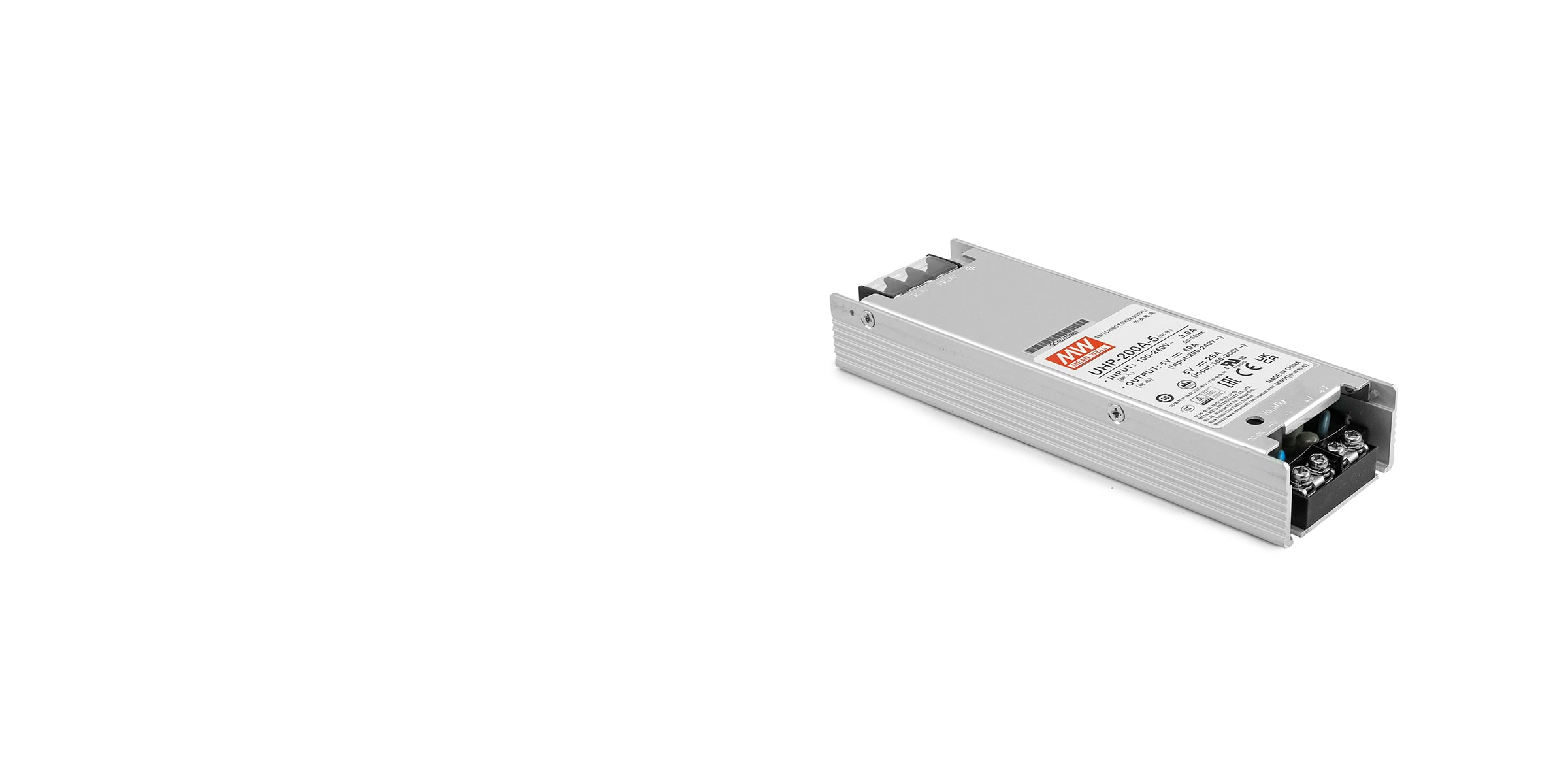

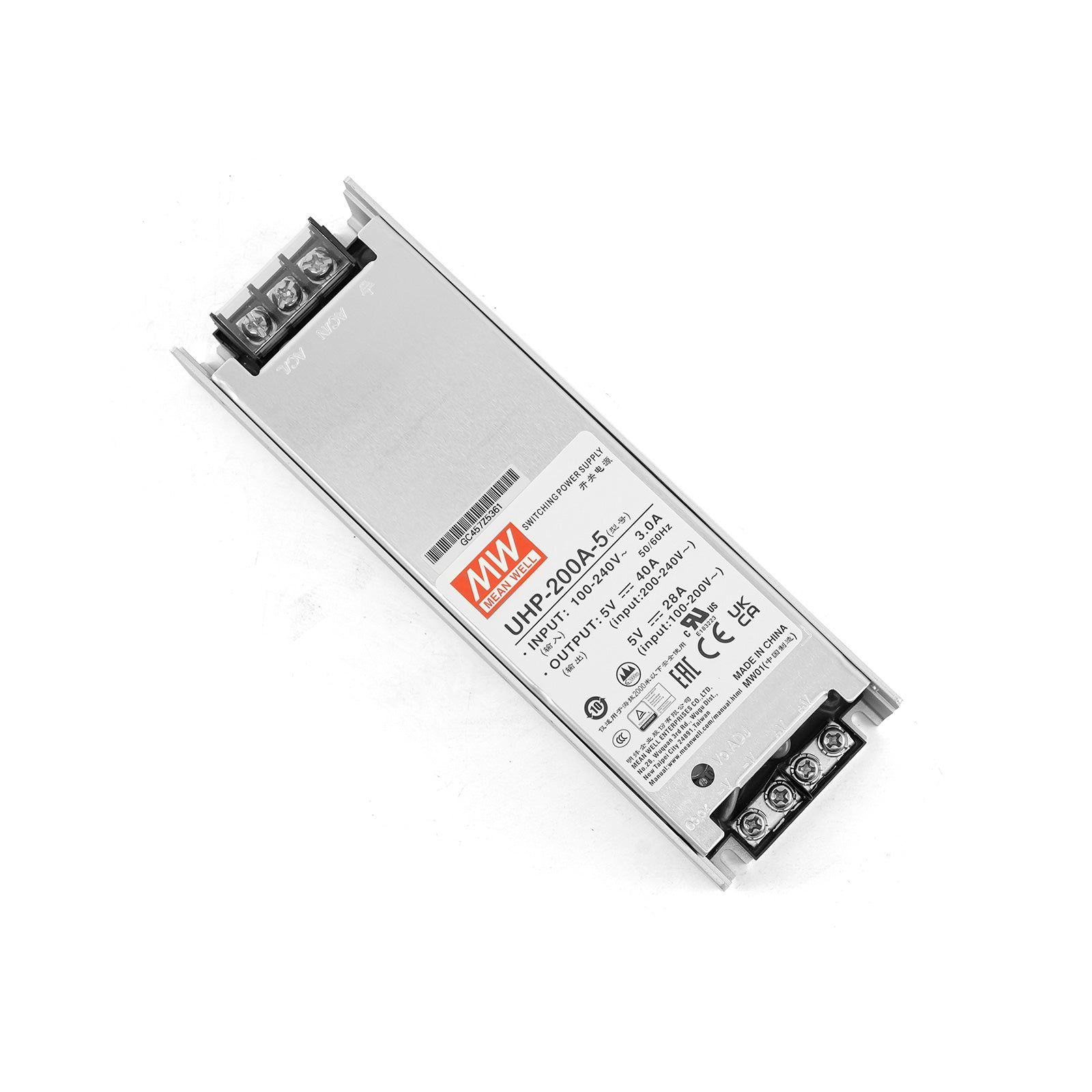

Meanwell UHP-200A-5 Power Supply for LED Display

Meanwell UHP-200A-5 Power Supply for LED Display

€99,00

Model: UHP-200A-5

UHP-200A-5

Quantity:

€99,00

The UHP-200A series is a 200W power solution for LED displays, featuring an ultra-slim profile that simplifies delivery and installation. With high efficiency and energy-saving design, it’s ideal for LED signage, moving signs, channel letters, and LED TV walls.

Tech specs

The specs shown are based on the standard model. You are most welcome to contact us to customize a solution tailored to your needs.

Input Voltage Range

90 ~ 264VAC 127 ~ 370VDC

Frequency Range

47 ~ 63Hz

Power Factor

PF 0.97/115VAC PF 0.95/230VAC at full load

Efficiency

88.5%

AC Current

2.4A/115VAC 1.2A/230VAC

Inrush Current

Cold start 85A/230VAC

Leakage Current

<1.0mA / 240VAC

Overload Protection

Yes

Short Circuit Protection

Yes

Over Voltage Protection

Yes

Over Temperature Protection

Yes

Working Temperature

-30 ~ +70℃

Dimension

167*55*26mm (L*W*H)

Weight

0.42kg
