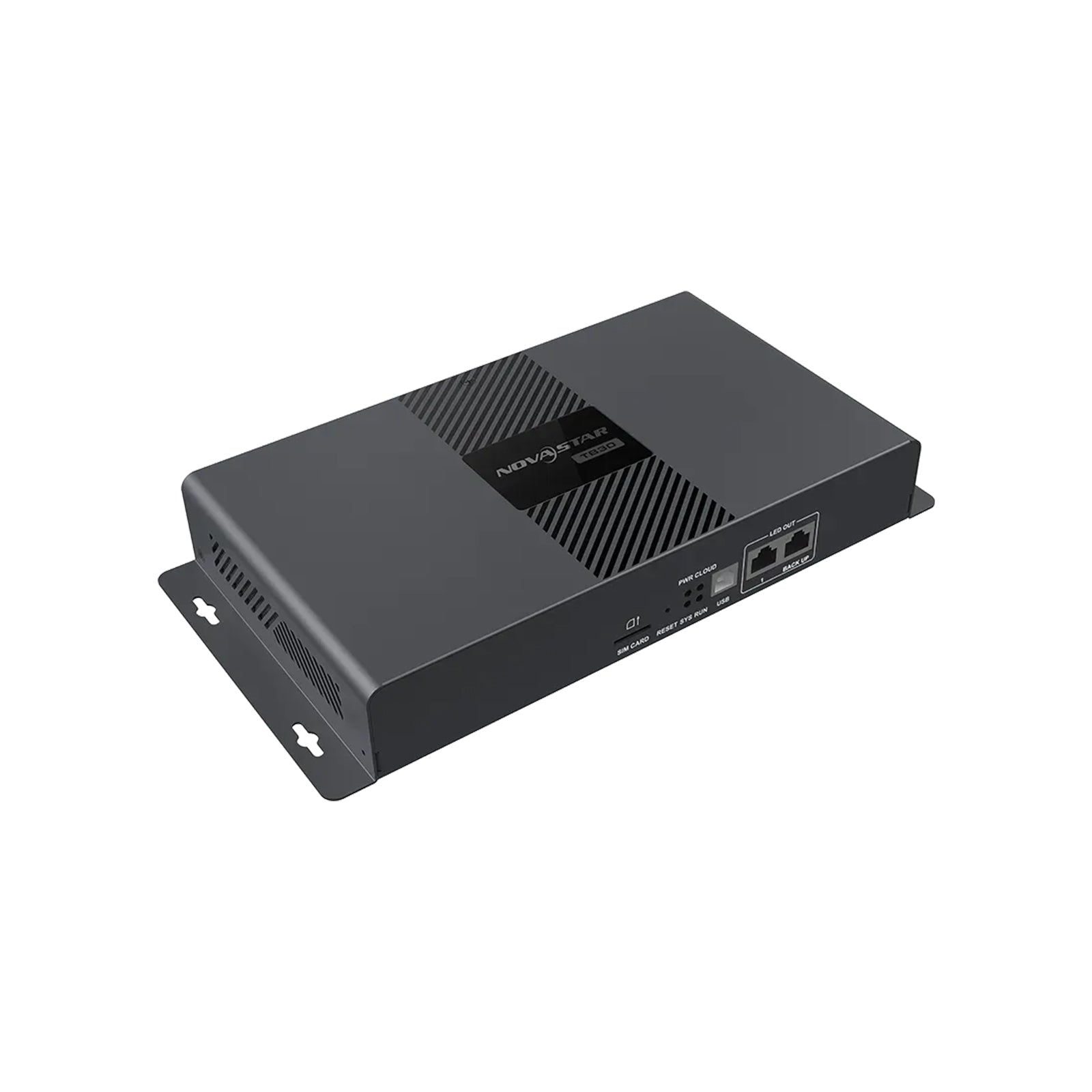

Novastar TB30 Multimedia Player for Full Color LED Display
Features

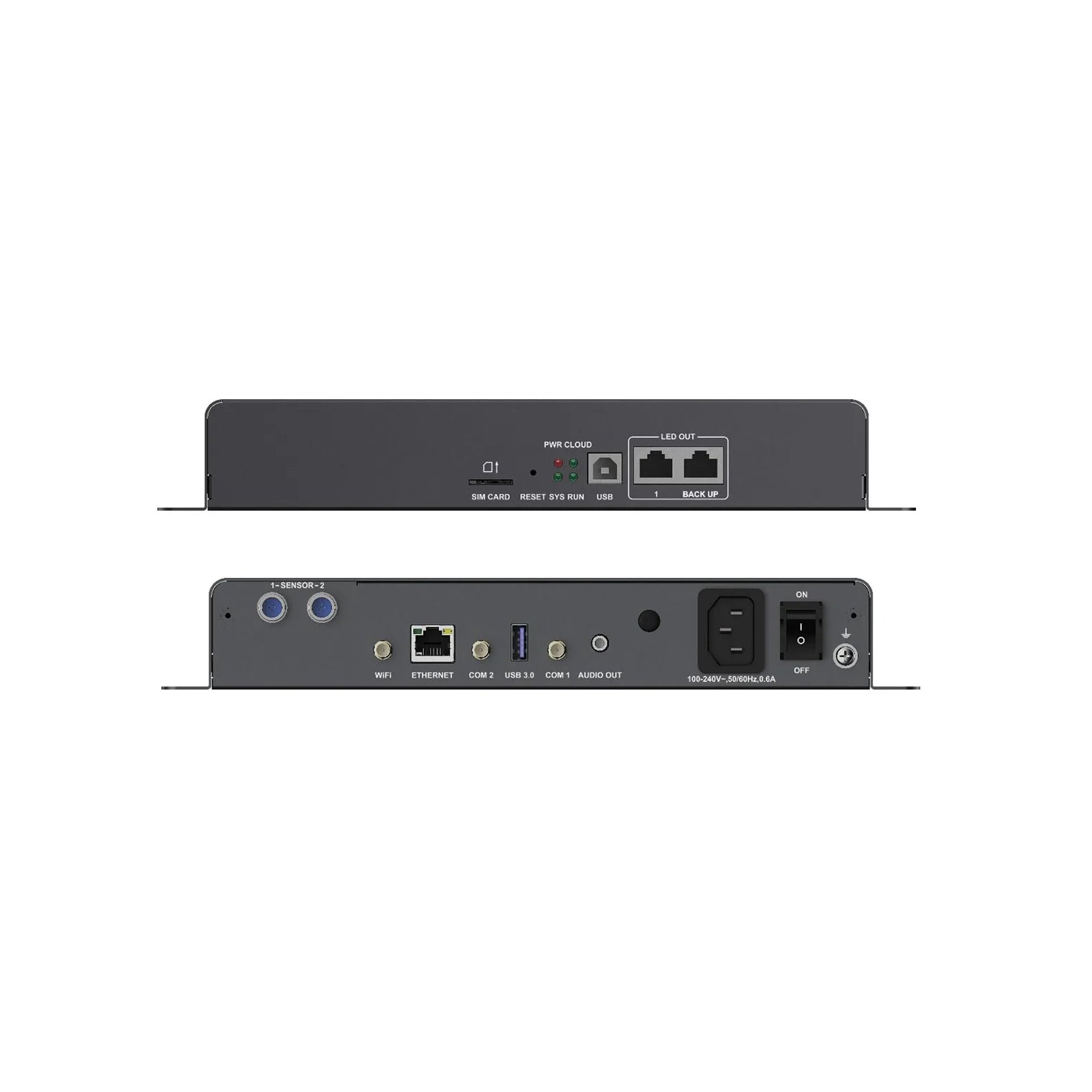

Output
- Loading capacity up to 650,000 pixels with maximum dimensions of 4096x4096.
- 2x Gigabit Ethernet ports, one as primary and the other as backup.
- 1x Stereo audio connector with fixed internal sample rate and variable external sample rates.
Input
2x Sensor connectors for brightness or environmental sensors.
Control
- 1x USB 3.0 (Type A) port for USB playback and firmware upgrades.
- 1x USB (Type B) port for control computer connection.
- 1x Gigabit Ethernet port for control computer or network connection.
Performance
- Quad-core ARM A55 processor @1.8 GHz, supporting H.264/H.265 4K@60Hz video decoding.
- 1 GB RAM, 16 GB internal storage.
- Flawless playback up to 2x 4K, 6x 1080p, 10x 720p, or 20x 360p videos.
Functionality
- All-round control plans for content publishing and screen control from various devices.
- Switching between Wi-Fi AP and Wi-Fi STA modes for flexible connectivity.
- Synchronous playback across multiple screens with various time synchronization methods.
- Support for optional 4G modules with network connection priority hierarchy.
Certficiations
NBTC, IMDA, PSB, FAC DoC, ENACOM, ICASA, SRRC, NOM-208, EAC DoC, EAC RoHS, RCM, UL Smark, CCC, FCC, UL, IC, KC, CE, UKCA, CB, MIC, PSE, NOM
Tech specs
The specs shown are based on the standard model. You are most welcome to contact us to customize a solution tailored to your needs.
TB30
650,000 pixels
1x Primary, 1x Backup
Width 4096, Hight 4096
4K 60fps: H.265 / H.264 / VP9
1GB RAM+16GB ROM
Up to 128G
No
No
Yes
Yes
NTP, Lora
RJ45, WiFi (AP&STA Switchable),
4G & 5G Network
Yes
Yes
Yes
CE, EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA
Android 11
